Whole Home Heating Solution

DOMESTIC HOT WATER & HYDRONIC SPACE HEATING

The new Richmond ENCORE® L-Series Super High Efficiency Condensing platform makes it easier than ever to enjoy whole home heating. Offering both space heating and domestic hot water, this platform includes combi boilers, boilers and tankless water heaters designed with innovative technology and delivering ultimate serviceability.

IntroProduct

Available in select markets.

MAXIMIZE HOT WATER Icon

INNOVATIVE TECHNOLOGY

Patented labyrinth heat exchanger provides up to a 96% AFUE rating for combi boilers and boilers, and up to .90 UEF for tankless

ENJOY NO-WAIT HOT WATER Icon

EARTH-FRIENDLY OPERATION

Improves air quality by reducing greenhouse gas NOx emissions by up to 75% for combi boilers and boilers1, and up to 65% for tankless for a cleaner environment2

MINIMIZE COLD WATER BURSTS Icon

WIRELESS CASCADING

Connect up to eight units to boost performance and save on costs and installation time (Wi-Fi not required)

SAVE ENERGY Icon

ULTIMATE SERVICEABILITY

A total of four or five moving parts, unmatched in the industry, simplifies servicing

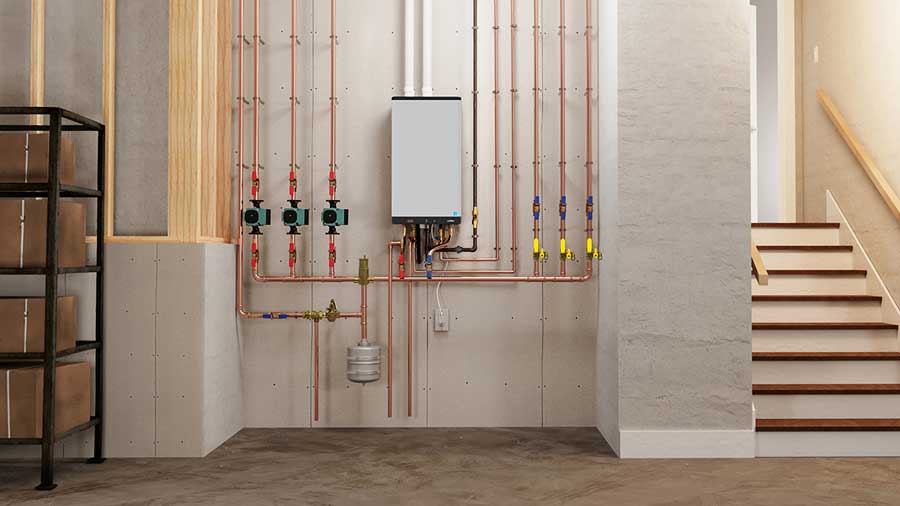

2 in 1 Design for Space and Water Heating

Delivering both space heating and domestic hot water in a compact, sleek European design, the Richmond ENCORE® L-Series Super High Efficiency Condensing Combi Boilers make it easy to heat your entire home and enjoy continuous hot water.

  • Patented Labyrinth Heat Exchanger

    Aluminum block heat exchanger with integrated copper waterways ensures maximum heat transfer with minimal heat loss

  • Advanced Modulation and Redundancy

    Enhances cascade system efficiency with multiple units operating at low fire versus one unit operating at high fire to satisfy demand

  • Reduces Carbon Footprint

    Uses less energy compared to standard units

  • Improves Air Quality

    Combi boilers reduce greenhouse gas NOx emissions up to 75% compared to standard efficiency boilers1

  • Universal Shared Platform Parts

    Make it easy to diagnose and service with common parts for all Richmond ENCORE L-Series units

  • Unmatched Streamlined Design

    A total of five moving parts—fan, gas valve, damper, boiler pump and bypass valve—is unmatched in the industry for simplified servicing

  • Illuminated Touchscreen Control Panel

    Provides operational status, troubleshooting information and allows setting adjustments

  • Versatile Venting Options

    Provide installation flexibility with movable combustion air intake (left/right), ability to flex vent in existing B vent and 2″ inlet and exhaust with band connections

  • Easy Grip Connections

    Extra-long pipe fittings with notched sides for easy gripping with a wrench

  • Built-in High Efficiency Variable Speed Boiler Pump

    Uses less electricity than a standard pump

  • Outdoor Reset Technology

    Adjusts the boiler supply temperature automatically based on outdoor temperature fluctuations

  • ENERGY STAR® Certified

    Up to 96% AFUE and ASME-rated3 (excludes 160K model)

  • Saves Space and Money

    With one appliance instead of two (boiler and water heater)

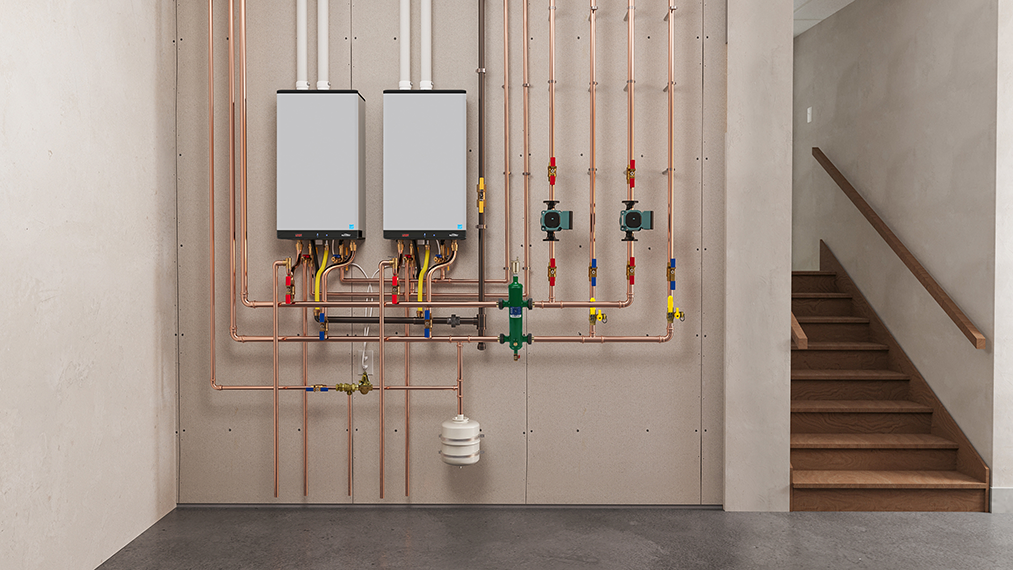

  • U.S. Market Exclusive – Condensing Combi-to-Combi Cascading

    The only condensing combi that can be cascaded for both space heating and domestic hot water4

plugplaybaseimage

Did You Know?

The Richmond ENCORE L-Series Combi Boilers are the only condensing combi boiler product that can be cascaded for both space heating and domestic hot water.4

ruudhybridbaseimage

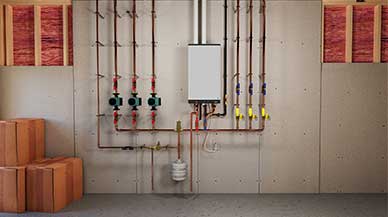

Condensing Boilers Offer Efficient Space Heating

Making it easy to heat your entire home, the Richmond ENCORE® L-Series Super High Efficiency Condensing Boilers deliver hot water for hydronic heating applications like radiant floors, baseboards, air handlers and more. High performance and reliable temperature control mean you can relax in consistent comfort.

  • Patented Labyrinth Heat Exchanger

    Aluminum block heat exchanger with integrated copper waterways ensures maximum heat transfer with minimal heat loss

  • Advanced Modulation and Redundancy

    Enhances cascade system efficiency with multiple units operating at low fire versus one unit operating at high fire to satisfy demand

  • Reduces Carbon Footprint

    Uses less energy compared to standard units

  • Improves Air Quality

    Reduces greenhouse gas NOx emissions up to 75% compared to standard efficiency boilers1

  • Universal Shared Platform Parts

    Make it easy to diagnose and service with common parts for all Richmond ENCORE L-Series units

  • Unmatched Streamlined Design

    A total of four moving parts—fan, gas valve, damper and boiler pump—is unmatched in the industry for simplified servicing

  • Illuminated Touchscreen Control Panel

    Provides operational status, troubleshooting information and allows setting adjustments

  • Versatile Venting Options

    Provide installation flexibility with movable combustion air intake (left/right), ability to flex vent in existing B vent and 2″ inlet and exhaust with band connections

  • Easy Grip Connections

    Extra-long pipe fittings with notched sides for easy gripping with a wrench

  • Built-in High Efficiency Variable Speed Boiler Pump

    Uses less electricity than a standard pump

  • Outdoor Reset Technology

    Adjusts the boiler supply temperature automatically based on outdoor temperature fluctuations

  • ENERGY STAR® Certified

    Up to 96% AFUE and ASME-rated3

Did You Know?

Richmond ENCORE L-Series super high efficiency gas models may qualify for tax credits and state or local rebates, helping you save on upfront costs.5

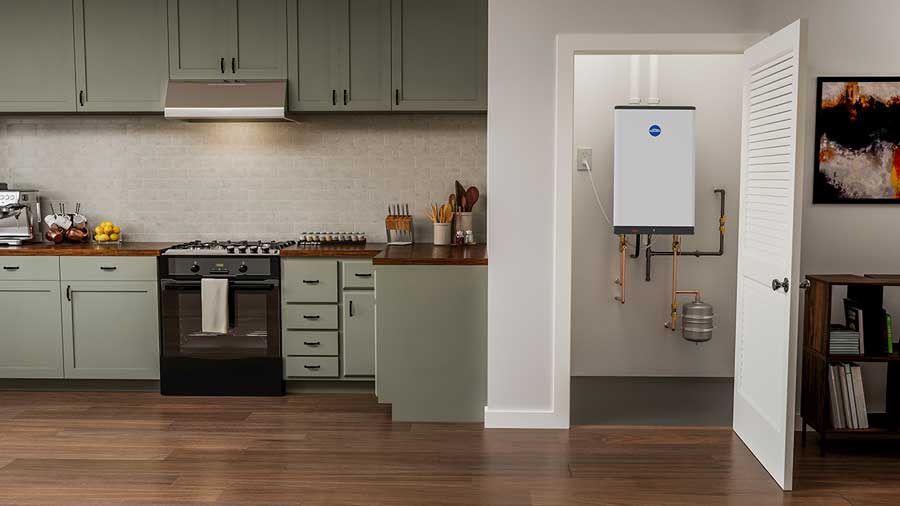

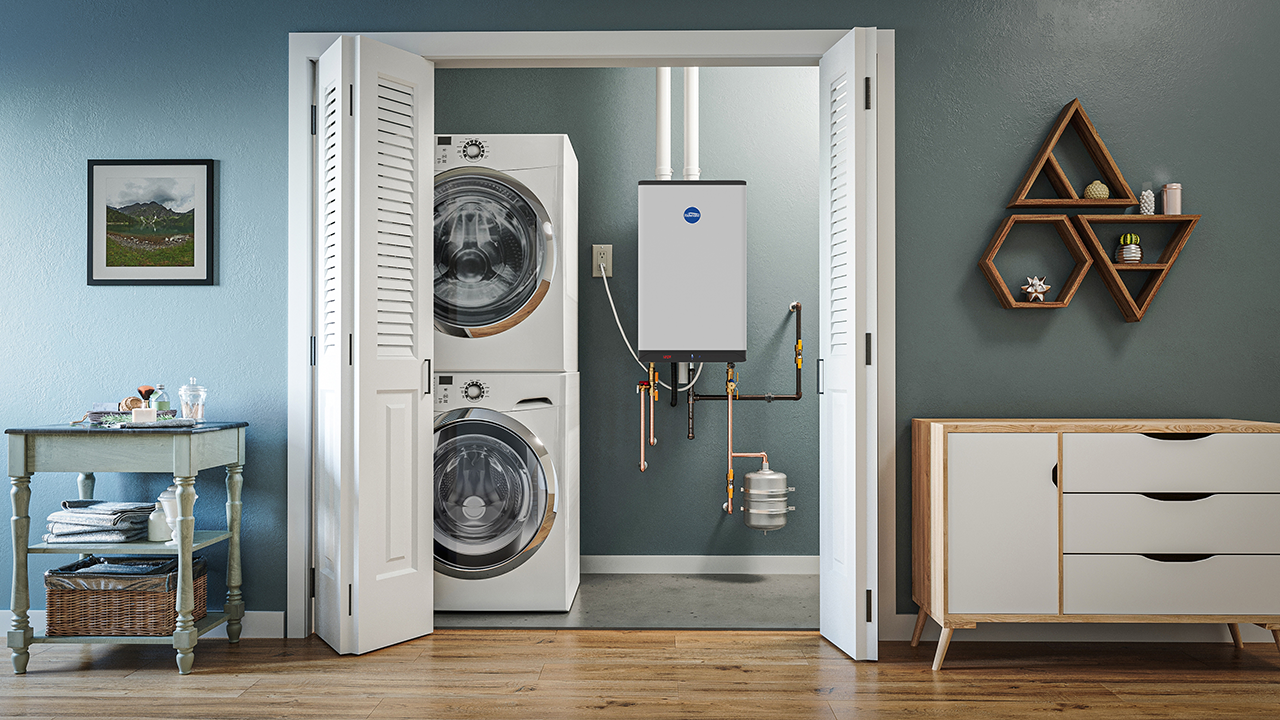

Premium Performance Even in Hard Water Regions

Richmond ENCORE® L-Series Super High Efficiency Condensing Tankless Water Heaters provide energy efficiency and high performance in a compact European design. Plus, they’re made to stand up to extreme hard water applications6—so you can count on having continuous hot water when you need it.

  • Patented Labyrinth Heat Exchanger

    Aluminum block heat exchanger with integrated copper waterways ensures maximum heat transfer with minimal heat loss

  • Advanced Modulation and Redundancy

    Enhances cascade system efficiency with multiple units operating at low fire versus one unit operating at high fire to satisfy demand

  • Reduces Carbon Footprint

    Uses up to 32% less energy than a standard 50-gallon tank water heater to minimize your impact on the environment7

  • Improves Air Quality

    65% reduction in greenhouse gas NOx emissions compared to standard gas tank for a cleaner environment2

  • Universal Shared Platform Parts

    Make it easy to diagnose and service with common parts for all Richmond ENCORE L-Series units

  • Unmatched Streamlined Design

    A total of four moving parts—fan, gas valve, damper and bypass valve—is unmatched in the industry for simplified servicing

  • Illuminated Touchscreen Control Panel

    Provides operational status, troubleshooting information and allows setting adjustments

  • Versatile Venting Options

    Provide installation flexibility with movable combustion air intake (left/right), ability to flex vent in existing B vent and 2″ inlet and exhaust with band connections

  • Easy Grip Connections

    Extra-long pipe fittings with notched sides for easy gripping with a wrench

  • Premium Performance in Extreme Hard Water Regions

    Cast aluminum heat exchanger protects copper waterways and minimizes lime formation

  • Industry’s Most Comprehensive Warranty

    Enjoy peace of mind with a 15-year heat exchanger (replace entire unit not just heat exchanger) and 5-year parts warranty8

  • Save Money

    Save up to 33% per year in energy costs over a standard 50-gallon gas residential tank water heater

plugplaybaseimage

Did You Know?

Richmond ENCORE L-Series Tankless Water Heaters deliver the best hot water performance with higher flow than the leading tankless competitors in hard water operations over the life of the product.9

A Whole Home Heating Solution

Make the most of your home comfort with the Richmond ENCORE L-Series platform, designed to provide super-high efficiency condensing space heating and domestic hot water, saving you space and energy.

Gallery

Innovation badge

Degrees of Innovation

We focus on innovating with intent, engineering solutions with lifetime sustainability in mind—from material selection to smart features to responsible recycling.

Learn More
Innovation product
1Based on comparison of Richmond ENCORE L-Series combi and boiler against a minimum efficiency boiler with like fuel type. 2Based on comparison of Richmond ENCORE L-Series tankless against a standard residential 50-gallon tank type model with like fuel type not to exceed 75,000 BTU. 3Based on comparison of Richmond ENCORE L-Series combi or boiler against minimum efficiency heater. 4Based on comparison of similar models from leading competitors in the North American market. 5Eligibility varies; contact your state or local government to determine availability in your area. 6Claim based on hard water condition testing, up to 400ppm (23 gpg); Routine maintenance required. 7Based on reduction in energy usage of Richmond ENCORE L-Series tankless with a 0.90 UEF compared to a standard residential 50-gallon tank type model with a 0.61 UEF; Assumes like fuel type, not to exceed 75,000 BTU. 8Based on comparison of Richmond ENCORE L-Series tankless model against similar models from leading tankless competitors. 9Based on results of hard water condition testing performed on Richmond ENCORE L-Series tankless and five leading competitor units at standard temperature and pressure; Routine maintenance required; Life defined as the 15-year length of the provided limited warranty.
