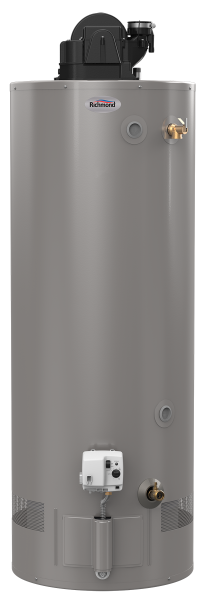

Essential Series: Power Vent

Essential Power Vent gas water heaters offer up to 100 foot vent runs, energy efficiency and the flammable vapor detection system

Efficiency

• .65 - .69 UEF
• Energy Star® rated

Performance

• FHR: Up to 78 gallons for 50-gallon models and up to 86 gallons for 40-gallon models
• Recovery: 32.4 to 42.4 GPH at a 90° F rise, depending on model

Self-Diagnostic System

• Electronic gas control for improved monitoring and service

Low Emissions

• Eco-friendly burner, low NOx design

Features

• Uses indoor air for combustion; blower exhausts the flue gases
• Standard 120 VAC electrical connection
• Whisper quiet blower

Flammable Vapor Detection System

• Exclusive air/fuel shut-off device for double protection
• Maintenance free – no filter to clean
• Disables the heater in the presence of flammable vapor accumulation

Flexible Venting Options

• Long venting lengths up to 100 equivalent feet
• 2” or 3” PVC, ABS, or CPVC vent pipe options
• Vertical or horizontal termination


Longer Life

• Premium grade anode rod provides long-lasting tank protection

High Altitude Compliant

• Tall models certified for applications up to 7,700 ft. above sea level and short models up to 5,999 feet above sea level

Plus…

• Side water connections for space heating available on select models
• Quality anode rod helps protect against tank corrosion
• Temperature and pressure relief valve included
• Low lead compliant
• Durable Silicon Nitride Ignitor (HSI)
• EverKleen™ patented system fights sediment build-up
• Models can operate at high ambient temperatures above 100º F and up to 175º F with special venting requirements (see Use & Care manual for more information)
• High Ambient Temperature Service Kit available for installations from 100-175ºF. See chart on page 2 for more information
• Standard replacement parts
